Launch Creader 3001

Newest Version LAUNCH CR3001 OBD2 Scanner PK CR319 Full OBD2 Function Diagnostic tool Read & Delete Fault Code, Read frozen frame, Read Vehicles Information,Turn off Engine warning light ,free update online, ect…

Free online upgrade CR3001

1. Gas Cap
2. Oxygen Sensor
3. Air Fuel Ratio Sensor
4. Mass Air Flow Sensor
5. Ignition Coils
6. Spark Plug Wires
7. Spark Plugs
8. Thermostat
9. EGR Valve
10. Evaporatative Emission Canister Purge Valve(EVAP)
11. Catalytic Converter.

If the engine light is not turned off in time it will Cause Serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature , ect

Why choose LAUNCH X431 CR3001 Scanner for your car?

1.Small compact design, scan faster and indicates test results directly. Even a beginner can use this unit to analyze any OBD2 protocols Vehicles, and tells you everything about Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status,Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance,Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages,associated short term fuel trims,Fuel System status, Fuel Pressure, ect

2.Compared with competitors, LAUNCH CR3001 covers more models, support up to 2021 year, including SUVs, minivans, light-duty trucks, ect

3.The LAUNCH CR3001 Scanner is well built with a large LCD display, Plug and play, without a built-in battery, and get power directly from powered by the diagnosis sockets

4. It’s equipped with cable ，there are 4 buttons on CR3001, The up/down button for scrolling the menu. The OK and Return button allow for navigation back and entering menu.

5. Multi-language design and free online upgrade，LAUNCH CR3001 can set the language to English, French, Russian, Spanish, German, Italian ,Portuguese with one key, Get the upgrade tool on LAUNCH official website, Solve language barriers ,keep CR3001 software up to date and solve more bug

LAUNCH CR3001 Support OBD2 protocols car :

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud

Multi-Language supported

The CR3001 operating system can quickly be changed into English, French, Russian, Spanish, German, Italian and Portuguese.

Wide vehicle coverage

1.American Car list:

Need standard obd2 , and release year from 2000-now
Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect…

2.European car list:

Need standard obd2 , and release year from 2003-now
Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia ,Seat, ect …

3. Russian car list:

Need standard obd2 , and release year from 2012 -now
GAZ, VAZ, Lada, IZH, Paz, SeAZ, UAZ, ZAZ,ect….

4. Japanese / Korean car list:

Need standard obd2 , and release year from 2006-now
Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai , Kia, ect …

5. Chinese car list:

Need standard obd2 , and release year from 2009 -now
Great Wall, Huachen, Geely, DF Honda ,Lifan, ect …

The full function of CR3001 (Support Full OBD2 functions, Engine Check including ) :

Read and erase fault codes

Read DTCs (Diagnostic Trouble Codes) to locate the issues,Clear DTCs to turn off the Check Engine Light after certain repairs

Live Data Viewing

Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter.This function will let you see engine performance information, if there are any trouble codes or issues with your engine or ECU.

Freeze Frame

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. It intended to provide you with a guide as to where a fault might be occurring within a vehicle.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor Test

etrieves and displays test results for emission-related powertrain components and systems. Which is a way to find out if the engine has any misfire or compression problems on a particular cylinder, or other data that might indicate a problem but isn’t severe enough to trigger a check engine light.

Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability
……

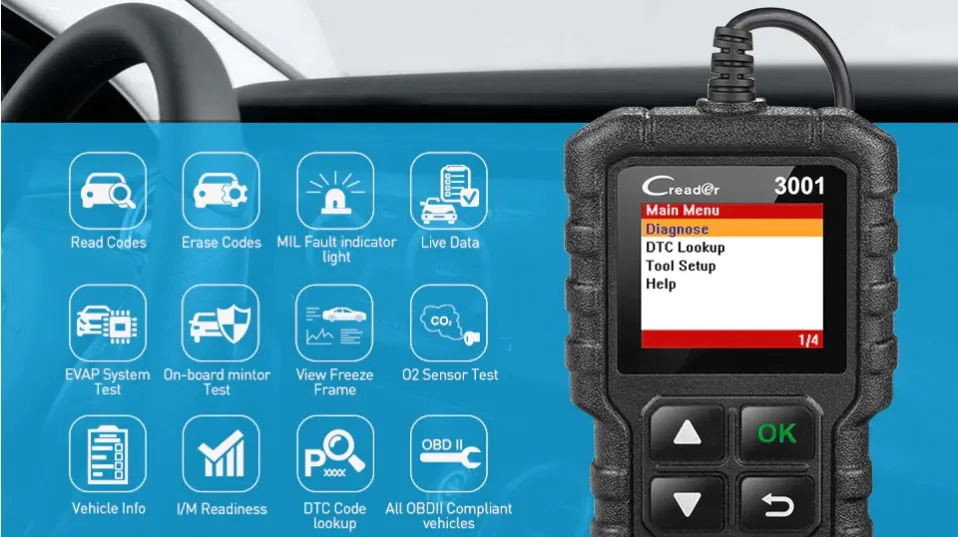

LAUNCH X431 CR3001 function display

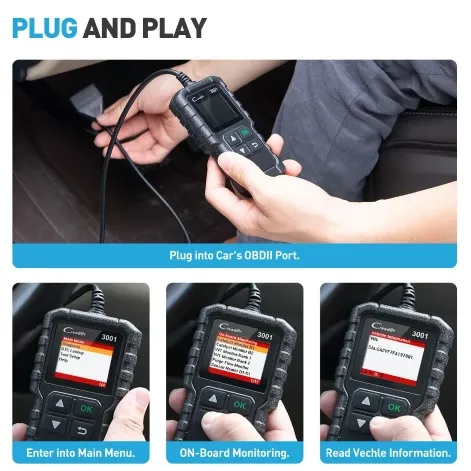

How to diagnostic car with CR3001?

Keep CR3001 as the latest version, free updates for life

update website :
https://eninfo.x431.com/prod_view.aspx?TypeId=68&Id=263&FId=t3:68:3

How to Update Launch CR3001 :

Step 1 : Download update tool from launch offical website , then install in your computer .
Step 2 : Connect CR3001 with computer use USB cable , pls install the driver well !
Step 3 : open update tool to Update , it will be ok .
(if you still do not know how to operate , please check video below )

LAUNCH CR3001 Packing List :

1pc Main unit of CR3001
1pc Usb cable
1pc User Manual
