LAUNCH CNC603A Fuel Injector Cleaner & Tester 6 Cylinder Ultrasonic
Injector Systems Cleaning Machine Test Bench Equipment Tools [Update of
LAUNCH CNC602A]

[Wide Range of Applications]: LAUNCH CNC603A car fuel injector tester and cleaner has a good compatibility. Supported most cars and motorcycles to ‘clean’ and ‘test’ fuel injectors. And also can be used to ‘clean’ diesel fuel injectors.

[Leading Technology]: At present, only LAUNCH TECH produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.

[Easy to Operate]: When cleaning or testing, fix the car injector in the socket of the washing tank, add an appropriate amount of cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube industrial alcohol, the test or clean can be completed after power on.

[Safety Guarantee]: Its working voltage range is 110V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.

[One Year Warranty]: For damage caused by non-human factors, we promise to resend parts for free within 1 years. Supported languages: English, Japanese, Russian, Korean, French, Portuguese, Italian, Chinese.

LAUNCH CNC-603A 110V Fuel Injector Cleaner is a professional 6 cylinders auto fuel injector testing cleaning
machine. It will help us clean and test the injectors of gasoline cars and motorcycles. Support for more cars and motorcycles. Can Support diesel and gasoline washer .Its working voltage range is 110V.   CNC-603A Car Fuel Injector Tester Cleaner has more languages Support For 99% Cars & Motorcycles.

How to work?

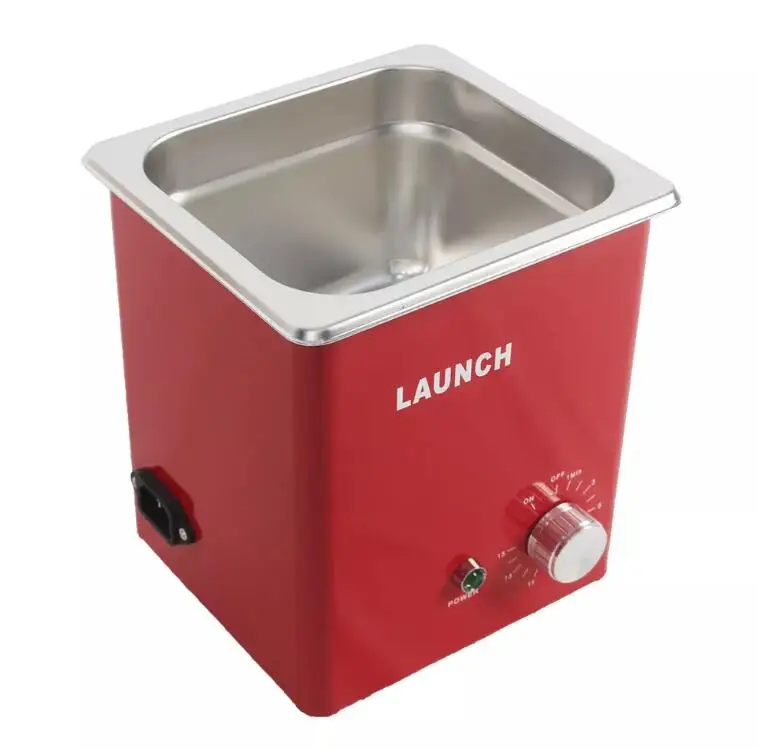

1.Clean injector’s outside with cleaning liquid before open machine. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.

2. Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors. After cleaning, the remaining cleaning fluid can be recycled.

3.Fixed injectors on main machine, testing injectors for resistance, shorts, and current draw. The test liquid can be added to the half of the glass tube.

4. Performing leak test, spray pattern, and flow rate testing on flow bench. The injectors are now returned to the flow bench for retesting of all functions.

CNC-603A Features:
1. The sheet metal shell design is good for durable and reliable usage.

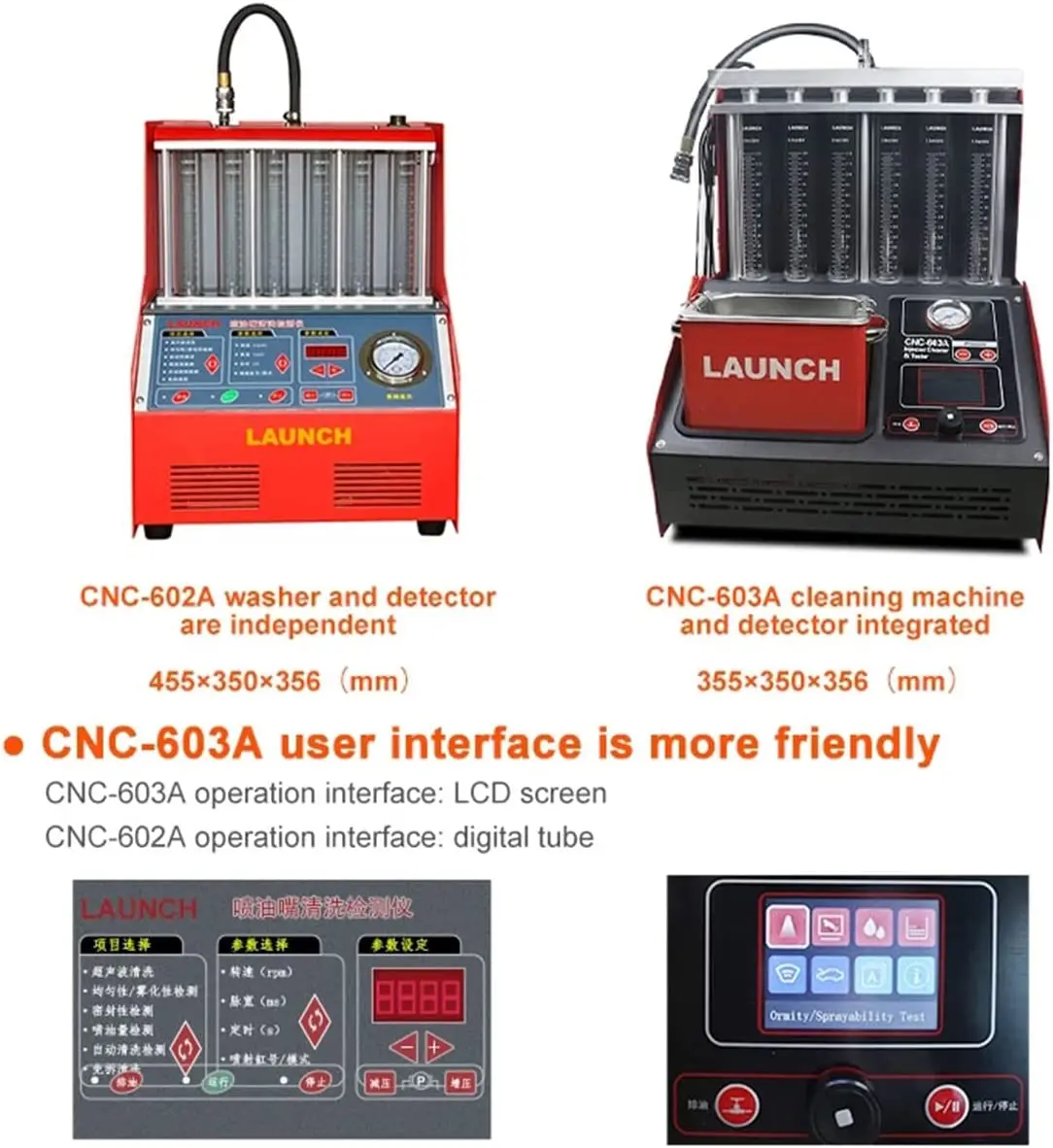

2. 2 in 1 design for more space saving, the cleaner can be separated from the device.
3. Glass tube is resistant to high and low temperature.
4. User-friendly design of the fuel intake and drain pipe for convenient oil filling and discharge.
5. The seamless design of the key mask for better oil resistance.

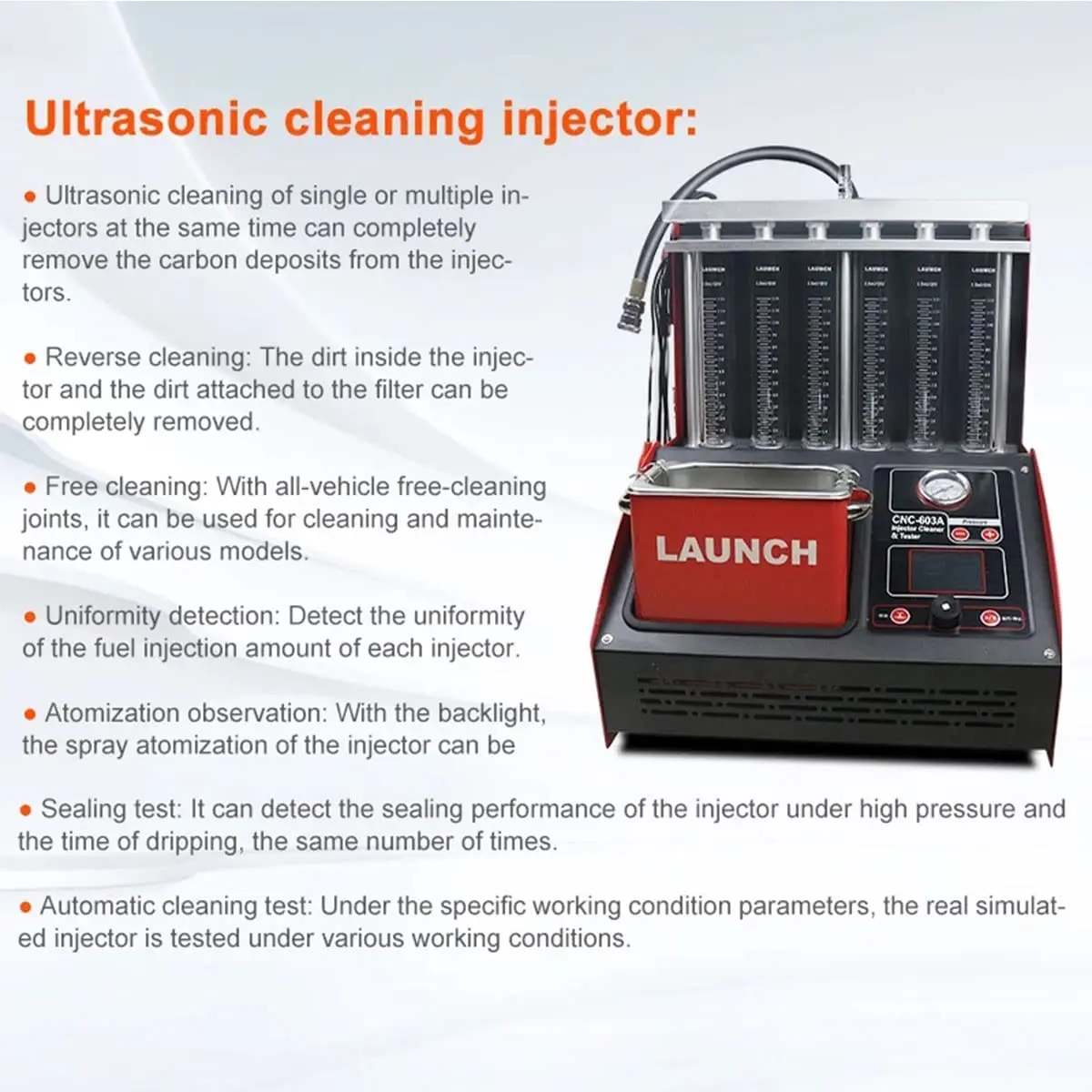

6. Apply the ultrasonic cleaning technology, support on-vehicle cleaning.
7.Variety test includes uniformity and atomization detection, sealing test, fuel injection quantity detection, automatic cleaning detection.
8. Automatic injector cleaning inspection.
9. Automatic control of cleaning and detection process.
10. Support both automatic and manual oil draining.
11. Scan QR code and get access to LAUNCH platform, check equipment information and send product feedback

Specification
Power: AC110V-127V, 50Hz/60Hz, 3Amax
Mechanical Power: 300W
Ultrasonic Cleaning Power: 100W
Speed Range for Simulation Test: 10～9990rpm (step: 10rpm)
Timing Range: 1～9999s Pulse Width Range: 0.5～25ms (step: 0.1ms)
Operating Volume: 2000ml
Packing Dimension: 438mm×438mm×528mm
Main Unit Dimension: 355mm×350mm×356mm
Net Weight: 16.5kg
Gross Weight: 18.5kg
Environment Temperature: 0℃~+45℃
Relative Humidity: ＜85%
Strength of External Magnetic Field: ＜400A/m
Open fires is strictly prohibited within 2M
