LAUNCH X431 PAD VII ELITE

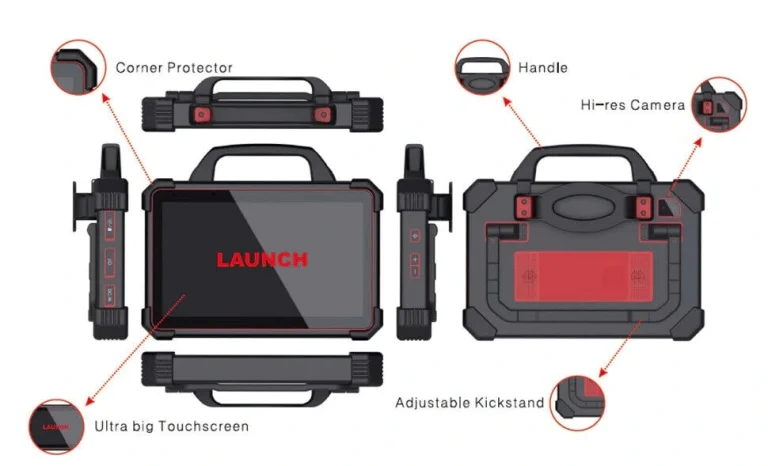

The LAUNCH X-431 PAD VII ELITE is a premium, workshop-level diagnostic scanner designed for advanced vehicle diagnostics, ECU coding, ECU programming, and intelligent troubleshooting. Featuring a large 13.3-inch touchscreen, 8GB RAM, 256GB storage, and a powerful 2.0 GHz octa-core processor, the PAD VII ELITE delivers fast, smooth, and highly efficient diagnostic performance.

Built for modern workshops, it supports SmartLink remote diagnostics, J2534 ECU programming, topology mapping, bi-directional control, and wide vehicle coverage across more than 110 brands worldwide.

ELITE Advantages Compared to the Standard PAD VII

The PAD VII ELITE offers additional benefits over the standard PAD VII, including:

• Updated EOBD/OBDII software to V23.03

• New OBFCM data viewing function
  (available as the last function in the menu after entering the system)

Main Advantages

• 8GB memory for faster and smoother operation

• Large 13.3″ sunlight-readable touchscreen

• Supports up to 9 expansion modules, such as:

  • oscilloscope

  • sensor simulator

  • battery tester

  • TPMS module

  • videoscope / endoscope

• Supports SmartLink remote diagnostics

• Supports D-PDU / J2534 / RP1210 diagnostic standards

• Supports CAN / CAN FD / DoIP protocols

• Supports access to FCA Group Security Gateway Module (SGW) protected systems

• Optional HaynesPro repair database available for purchase within the software

• Additional software and functions can be expanded via the built-in MALL module

Supported Languages

English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian (partial), Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, Czech.

Free updates included for 2 years.

All-in-One High-End Diagnostic Solution

The LAUNCH X-431 PAD VII ELITE is the latest upgraded diagnostic platform in the X431 series, developed as an advanced successor to models such as ProS V, V+, PAD III, and PAD V.

It combines:

• ECU programming

• ECU coding

• 35+ reset and relearn functions

• 60+ advanced service functions

• Full-system diagnostics

• Active tests / bi-directional control

• Topology mapping

• Guided diagnostics and troubleshooting

• OBDII connector pin detection

• OE-level diagnostics

J2534 ECU Programming

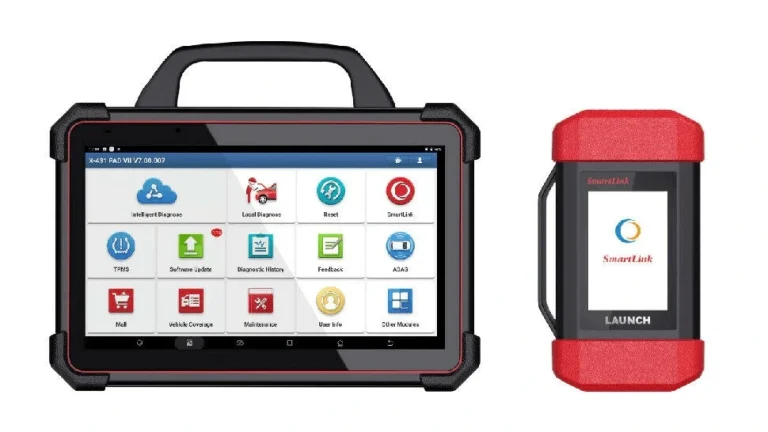

Equipped with the SmartLink C VCI interface, the PAD VII ELITE can act as a passthrough device for OEM software, enabling efficient J2534 ECU programming.

This allows technicians to:

• replace existing ECU software or firmware

• program new ECUs

• solve software-controlled drivability and emissions issues

• perform OEM-level programming procedures

Available for selected brands including:

• VAG Group

• Mercedes-Benz

• BMW

• Porsche

Support for the Latest Vehicle Protocols

The SmartLink C VCI has been developed to support a wide range of current and next-generation communication protocols and standards, including:

• J2534

• RP1210

• D-PDU

• CAN

• CAN FD

• DoIP

This makes it suitable for diagnosing complex issues in both passenger vehicles and, with optional expansion, commercial and heavy-duty vehicles.

Heavy-duty software can be purchased through the MALL module.

OE-Level Diagnostics

The PAD VII ELITE is designed as a professional OE-level diagnostic platform, offering:

1. Full-System Diagnostics

Deep access to all available vehicle systems, including:

• Engine

• Transmission

• ABS

• Airbag / SRS

• EVAP

• TPMS

• BMS

• BCM

• and more

2. Topology Mapping

Provides a visual map of all modules and communication status, making it easy to identify faults and communication issues across the vehicle network.

3. 4-in-1 Live Data Graphing

Displays multiple live data streams in one combined graph, making road-test diagnosis easier and faster.

4. OBDII Connector Pin Detection

Automatically detects communication protocols and checks whether the OBDII connector pins are damaged.

Key Functions

• Full-system vehicle coverage for 110+ brands worldwide

• Expandable via the new MALL module

• Real-time voltage display during diagnostics

• Topology mapping with DTC and communication status view

• Automatic protocol detection

• Auto VIN identification

• Guided functions for VW and Audi

• Optional ADAS calibration support

• Advanced ECU coding and programming

• TPMS expansion support

• 2.4GHz and 5GHz dual-band Wi-Fi for fast and stable connection

• Diagnostics for light, medium, and heavy-duty vehicles with SmartLink C

• Remote diagnostics

• Read and clear DTCs

• Live data graphing

• Wireless software updates

• Built-in repair information and training video modules

60+ Advanced Special Functions

The PAD VII ELITE supports a wide range of advanced maintenance and workshop functions, including:

• VAG guided functions
  Skip security access codes and channel numbers for VW / Audi / Skoda / Seat matching, calibration, and basic settings

• Component matching
  ECU relearning after module replacement for brands such as VW, Audi, BMW, Chrysler, GM, Ford, Opel, Mazda, Fiat, Honda, Nissan, Hyundai, Kia, Subaru, and more

• Power balance test
  Identifies weak cylinders on selected Chrysler, GM, and Ford vehicles

• PMI (Programmable Module Installation)
  Loads the correct software, calibration, and configuration data into replacement modules for Ford / Mazda vehicles

• Personalization / customization

• Online calibration

• Online login service

• Online parameterization

• and many other advanced functions

Functions continue to expand through software updates.

35+ Reset and Relearn Functions

Includes common maintenance and service resets such as:

• Oil reset

• Injector coding

• Brake reset

• SAS reset

• BMS service

• ABS bleeding

• Throttle adaptation

• TPMS reset

• DPF regeneration

• Transmission relearn

• AFS reset

• EGR adaptation

• Sunroof reset

• Suspension reset

• Window calibration

• Seat calibration

• Language change

• Air/Fuel reset

• Coolant bleeding

• AdBlue reset

• NOx sensor reset

• Start/Stop reset

• Headlight matching

• Seat matching

• Door and window initialization

• Air suspension matching

• Multimedia reset

• Cluster reset

• Immobilizer service

• Tire change reset

Menu availability depends on vehicle make, model, and year.

8 Supported Expansion Modules

The LAUNCH X-431 PAD VII ELITE supports multiple optional expansion modules, including:

• VSP-600 VideoScope
  for close visual inspection in narrow spaces

• X-PROG / X-PROG3 Immobilizer Programmer
  for advanced key programming and IMMO services

• S2-2 Sensorbox
  for sensor diagnosis and simulation

• O2-1 ScopeBox Oscilloscope
  for signal capture, waveform display, and analysis

• Wi-Fi printer
  for printing diagnostic reports

• X431 TSGUN
  for TPMS sensor activation, relearn, and programming

• BTS360 Bluetooth Battery Tester
  for full battery analysis

ECU Coding

The PAD VII ELITE supports advanced ECU coding for:

Component Matching

After repair or replacement, the device can relearn modules, erase original ECU memory, and write adaptive data into replacement components to restore stable communication between systems.

Function Activation / Deactivation

The scanner also allows customization of vehicle features, such as:

• disabling Start/Stop

• enabling lock/unlock confirmation beep

• automatic door locking at speed

• seat belt warning settings

• mirror folding functions

• remote window closing

• emergency brake light flashing

• DRL activation / deactivation

• DRL brightness adjustment

• headlight flash on lock / unlock

• alarm-related light flash

• real speed display via GPS

• fuel consumption display

• instrument brightness adjustment

• optimal shift timing display

• HUD / instrument display options

• incoming call display

Note: ECU coding is not universally supported. Available options vary by make, model, and year.

ADAS Calibration Support

The PAD VII ELITE supports diagnostics for ADAS-related systems, including functions connected to:

• Automatic Emergency Braking (AEB)

• Lane Departure Warning (LDW)

• Lane Keep Assist

• Blind Spot Monitoring

• Night Vision

• Adaptive Lighting

The scanner can read ADAS-related fault codes.
For full ADAS calibration, a separate ADAS calibration frame/rack is required.

Vehicle Coverage

The PAD VII ELITE offers extremely wide coverage across American, Asian, European, and Australian vehicles, including:

Passenger Vehicles

USA:
Ford, Lincoln, GM, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Jeep

Asia:
Toyota, Lexus, Honda, Acura, Mazda, Subaru, Nissan, Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, Kia, Daewoo, Suzuki, Proton, Tata, Mahindra, SsangYong, Perodua, Maruti

Europe:
Audi, Mercedes-Benz, Maybach, BMW, MINI, Rolls-Royce, VW, Bentley, Bugatti, Opel, Vauxhall, Peugeot, Citroën, Volvo, Sprinter, Renault, Dacia, Fiat, Alfa Romeo, Abarth, Lancia, Rover, Land Rover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Aston Martin, Porsche, Jaguar

Australia:
Holden, Ford Australia

Heavy-Duty Vehicle Support

Optional HD software and accessories are available for selected heavy-duty and diesel vehicles, including brands such as:

• Nissan Diesel

• Mitsubishi Diesel

• Ford Diesel

• Kenworth

• Astra

• Mercedes Heavy Duty

• Bosch Diesel

• Cummins

• DAF

• Delphi Diesel

• Denso Diesel

• FAW

• Foton

• FUSO

• Hino

• Hyundai Heavy Duty

• Isuzu Heavy Duty

• Iveco Heavy Duty

• JAC

• Mack

• MAN

Why Choose the LAUNCH X-431 PAD VII ELITE?

The PAD VII ELITE is an ideal solution for professional workshops that need:

• premium hardware performance

• advanced ECU coding and programming

• OE-level diagnostics

• modern protocol support

• remote diagnostic capability

• topology mapping

• expandable modular functionality

• wide vehicle coverage

It is a true all-in-one diagnostic platform for modern automotive repair.

Launch X431 EV Kit

The LAUNCH X431 EV DIAG Upgrade Kit is a professional diagnostic expansion package designed for high-voltage battery analysis in electric vehicles (EVs). It includes an activation card and a comprehensive set of adapters and test cables, enabling advanced diagnostics of EV battery packs.

This kit is fully compatible with LAUNCH X431 PAD V and PAD VII diagnostic tablets, significantly extending their capabilities for new energy vehicle diagnostics.

Important: This is an upgrade kit and cannot be used as a standalone device.

Key Features

• Advanced EV battery diagnostic upgrade for LAUNCH X431 series

• Supports battery pack analysis, including:

  • State of Charge (SOC)

  • State of Health (SOH)

• Compatible with major EV brands such as:

  • Tesla

  • BYD

  • and many other electric vehicles

• Includes activation card for enabling EV diagnostic functions

• Wide range of adapters and test leads for broad compatibility

• Ideal for workshops servicing electric and hybrid vehicles

Battery Diagnostic Capabilities

With the EV DIAG Upgrade Kit, technicians can perform:

• Battery pack condition analysis

• Cell and module-level diagnostics

• Voltage and performance monitoring

• Detection of battery degradation and faults

• Accurate evaluation of battery efficiency and lifespan

Compatibility

• Supported devices:

  • LAUNCH X431 PAD V

  • LAUNCH X431 PAD VII

• Supported vehicles:

  • Tesla

  • BYD

  • Additional EV brands (coverage expands with updates)

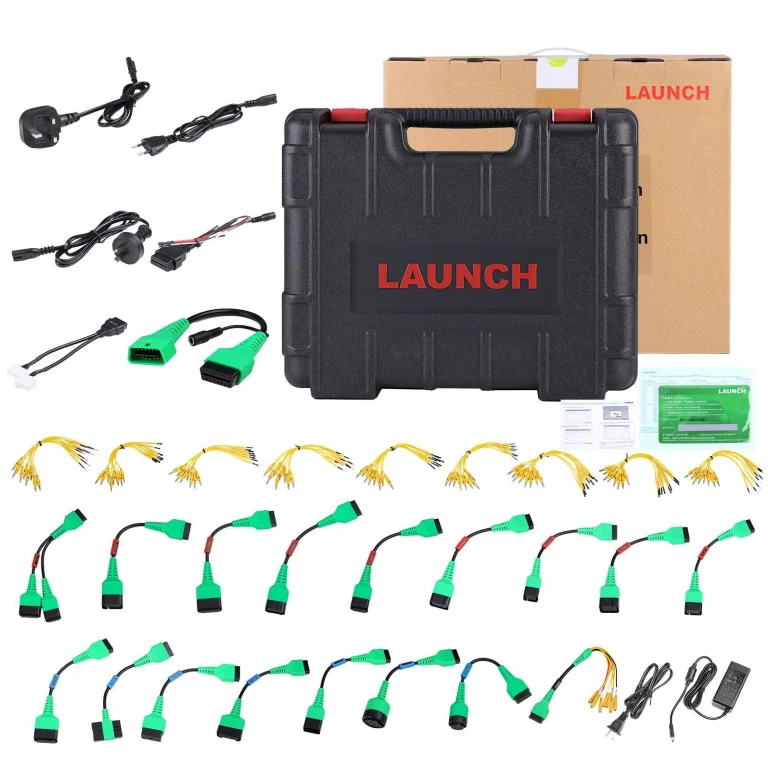

Package Contents

The kit includes a wide range of professional connectors, cables, and accessories:

Tesla & Specialized Connectors

• Tesla 12+20 connector

• Dedicated connector for Tesla airbag system diagnostics

Power & Extension Cables

• OBD16 male & female extension cable with DC connection

• UK standard AC power cable (220V / 1.3A, 1m) – for PAD VII

• EU standard AC power cable (220V / 1.3A, 1m) – for PAD VII

• AU standard AC power cable (1m) – for PAD VII

• Power adapter (12V / 4A / 48W) with US AC cable (2m)

EV Battery Diagnostic Components

• X431 EV MAX 8PIN battery sensor kit

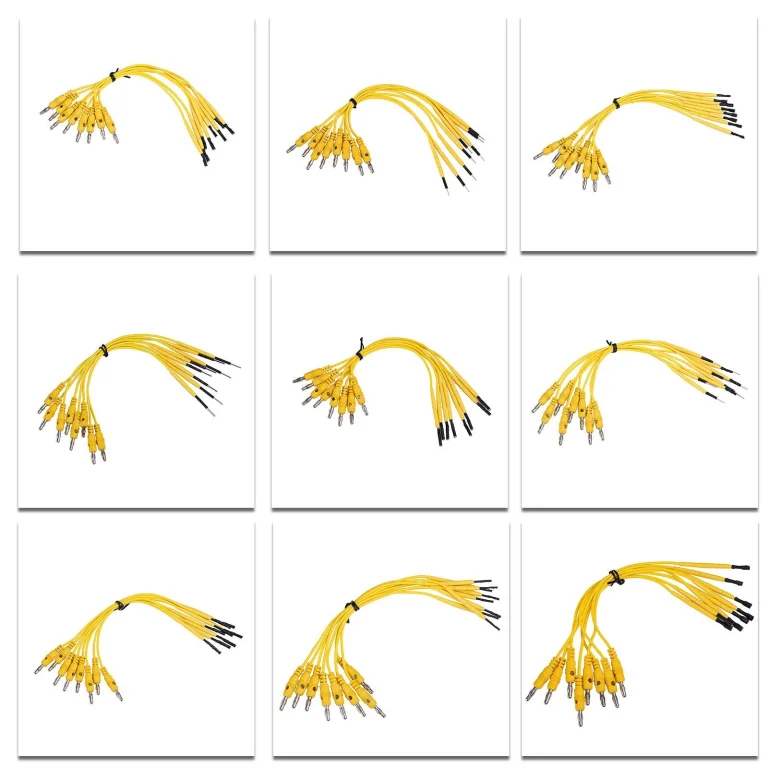

• Battery test leads (models 100–152 series)

• Battery pack and battery block test cables

Control Cables

• X-431 PAD IV electric control cables:

  • No. 1, 2, 3, 6, 7, 8, 10, 11, 12

Additional Items

• Overseas New Energy Sensor Expansion Kit

• Configuration and operation manual

• Activation card

Advantages

• Transforms your LAUNCH device into a complete EV diagnostic solution

• Enables deep battery-level diagnostics, beyond standard OBD functions

• Broad compatibility with multiple EV battery systems

• Essential tool for workshops entering or expanding into electric vehicle servicing

Important Notes

• Not a standalone device – requires PAD V or PAD VII

• Some functions depend on vehicle model and software version

• EV coverage is continuously expanding with updates
