TOPDON PHOENIX LITE3 / 2026

Descriere în limba engleză

The TOPDON Phoenix Lite 3 is a versatile and compact diagnostic tool designed for mechanics, DIY users, and small workshops. It delivers advanced functionality at an affordable price, making it an excellent choice for everyday diagnostic tasks.

Key Features & Advantages

• Excellent Value for Money
  Designed to offer high-end diagnostic capabilities at a competitive price point

• CAN-FD Protocol Support
  Enables accurate diagnostics for newer vehicle models, including post-2020 GM and Chrysler vehicles

• Online Coding Capabilities
  Access advanced vehicle functions and customization features

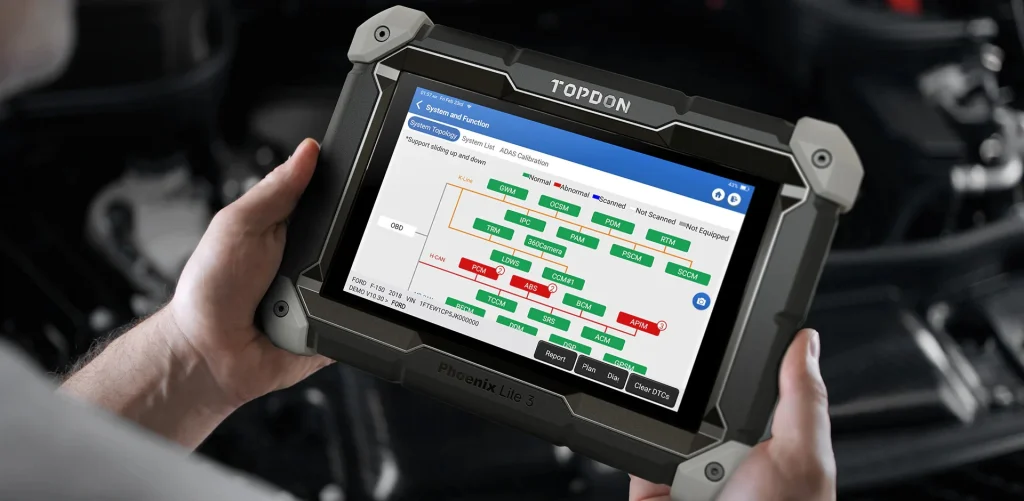

• Topology Mapping
  Provides a clear visual overview of vehicle systems, helping to quickly identify faults and understand module communication

• FCA Secure Gateway Support
  Seamless access to protected systems (e.g., Fiat vehicles) without additional adapters

Why Choose Phoenix Lite 3?

• VAG Guided Functions
  Step-by-step guidance for adaptations, calibrations, and basic settings, compatible with Volkswagen, Skoda, SEAT, and more

• Bi-Directional Control
  Send commands to ECUs and activate components (e.g., windows, lights, HVAC) for precise fault detection

• 28+ Maintenance Services
  Includes oil reset, EPB reset, DPF regeneration, transmission relearn, suspension calibration, throttle adaptation, odometer calibration, window calibration, and more

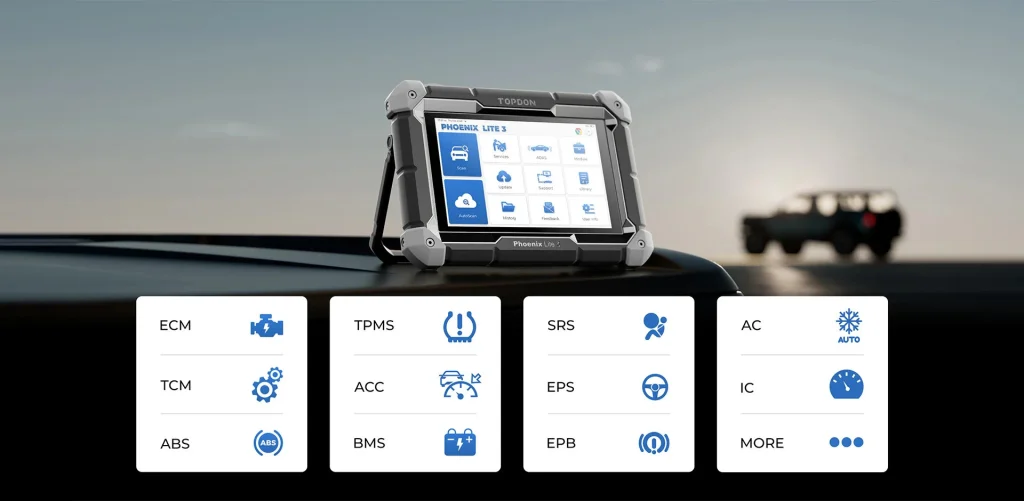

• OE-Level Full System Diagnostics
  Deep analysis of all major systems including engine, transmission, airbag, ABS, ESP, TPMS
  Compatible with over 200 vehicle models (GM, Ford, Chrysler, Mercedes-Benz, BMW, etc.)

• AutoVIN Function
  Automatically identifies vehicle information (make, model, year) for faster diagnostics

• 8” HD Display
  1280×800 resolution for clear and detailed visualization

• 2 Years Free Software Updates

28+ Service Functions

• Oil Reset

• SAS Reset

• EPB Reset

• BMS Reset

• DPF Regeneration

• ABS Bleeding

• Immobilizer (IMMO)

• Sunroof Reset

• Suspension Reset

• Transmission Reset

• AFS Reset

• Injector Coding

• Gear Learning

• TPMS Reset

• Throttle Adaptation

• Air/Fuel Ratio Reset

• AdBlue Reset

• Coolant Bleeding

• EGR Reset

• Language Change

• NOx Sensor Reset

• Odometer Calibration

• Seat Calibration

• Start/Stop Reset

• Airbag Reset

• Transport Mode Reset

• Tire Reset

• Window Calibration

Bi-Directional Control for Accurate Fault Detection

The Phoenix Lite 3 can access subsystems and components and send commands to ECUs to activate actuators, helping identify issues quickly.

Examples include:

• fuel injectors

• cooling fans

• water pumps

• power windows

• windshield wipers

• EGR valves

• sunroof adjustments

• window positioning

• and more

Technical Specifications

Display

• 8″ LCD

• Resolution: 1280×800

Processor

• Quad-core CPU

• 2.0 GHz

Operating System

• Android 10.0

Memory

• 2 GB RAM

• 64 GB storage

Battery

• 12,600 mAh / 3.8V

• Tested for up to 24 hours of operation with screen on

Voltage

• 9–18 V

Temperature Range

• Storage: -20°C to 60°C

• Operating: 0°C to 50°C

Dimensions

• 258 × 183 × 50.5 mm

Weight

• 1184.5 g

Multi-Language Support
English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech

VCI Specifications

• Operating Temperature: -10°C to 50°C

• Voltage: 9–18 V

• Current: ≤150 mA

• Dimensions: 127 × 82 × 36 mm

• Supports CAN-FD protocol

LED Indicators

• Power: solid RED light

• Vehicle communication: flashing GREEN light

• USB connection: solid PURPLE light
