Autel MaxiTPMS TS508 WF Instrument de Diagnosticare și Servicii TPMS Profesional

Autel MaxiTPMS TS508 TPMS Relearn Tool, 2023 Updated Ver. of TS508/TS601, Activate/Relearn All Sensors, Program MX-Sensors (315/433 MHz), TPMS Reset/Diagnosis, Lifetime Free Update

Autel MaxiTPMS TS508WF, Upgrated Version of TS401/TS501/TS508:

The MaxiTPMS® TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience AUTEL TPMS lines.

Main Features:

【Wi-Fi UPDATE】The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment. Autel TS508 Tire Sensor Programmer comes with LIFETIME FREE software updates for continuously fast-growing vehicle coverage.

【TWO TPMS SERVICE MODES】 The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

【Program Autel MX-Sensors】Autel TS508WF TPMS programming tool support both DIYers and auto technicians to program sensor data to Autel MX-sensors(315/433MHz) in no time.It comes with 4 TPMS sensor programming options: 1. Copy By Activation, 2. Copy By Manual Input, 3. Auto Create, 4. Copy by OBD( Not included in TS408) to replace faulty sensors with low battery life or not functioning well. NOTE: TS508 can program Autel MX-sensors only. It can NOT program other brand sensors.

【QUICK MODE / ADVANCED MODE COMPARISON】TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly; TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

【EXCLUSIVE TPMS STATUS SCREEN】 1.Read ECU sensor ID; 2.Check sensor ID and ECU ID matching condition; 3.Read DTCs from ECU and erase DTCs; 4.View DTCs detail description.

Quick Mode & Advanced Mode:

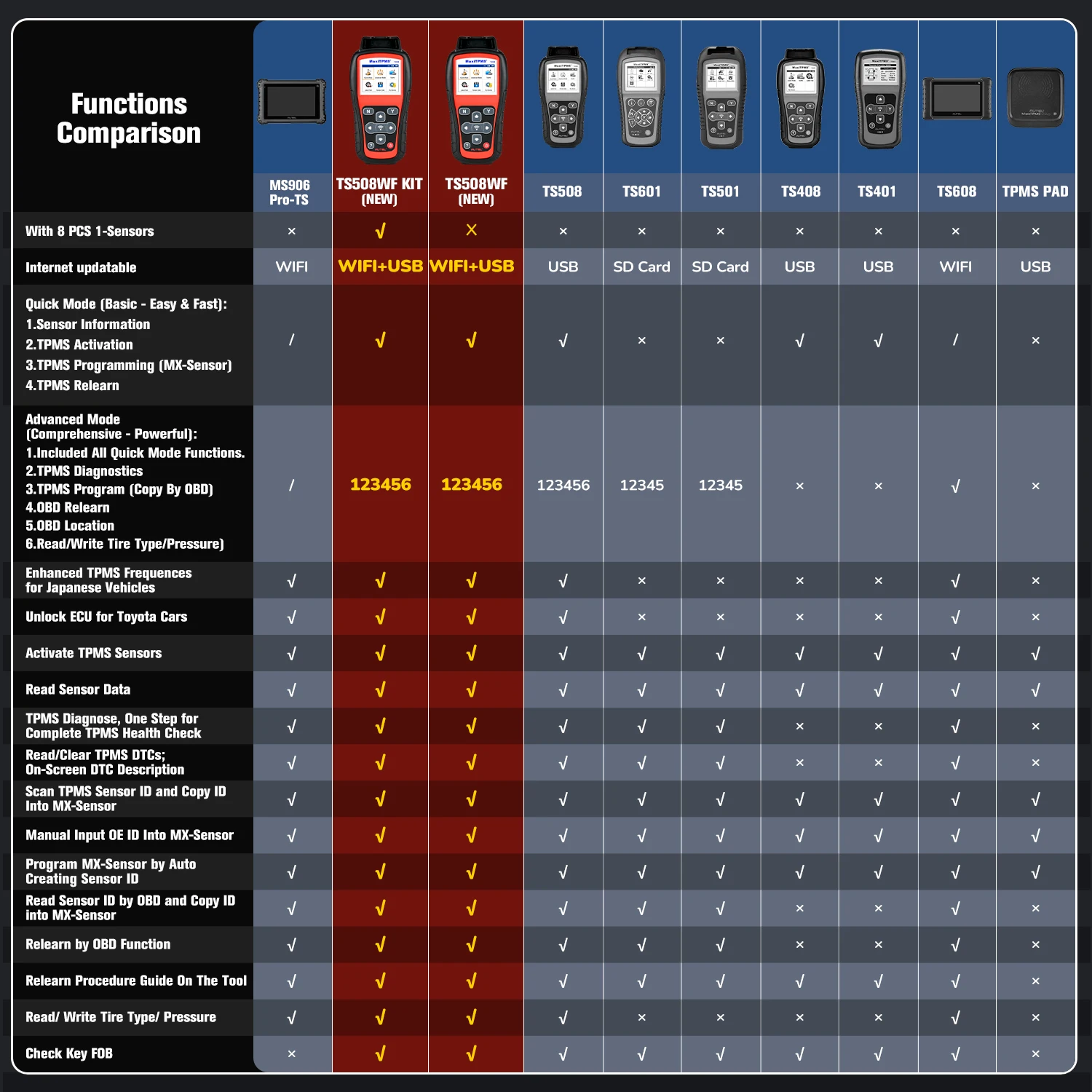

Compared with Autel MaxiTPMS TS501, TPMS scan tool TS508WF offers 2 operating modes for faster & smarter TPMS repairs. “Quick Mode” allows you to perform basic TPMS functions such as check TPMS sensors and program MX-Sensors quickly. “Advanced Mode” exerts comprehensive TPMS functions including TPMS diagnostics, MX-Sensor program, TPMS Relearn and Activation, retrieve sensor information.

Quick Mode Service:

➣ Activate All Known TPMS Sensors
➣ Read Sensor ID, Temperature, Pressure
➣ Read Sensor Battery Condition
➣ On-Tool OE Sensor Information
➣ Program MX-Sensor With 3 Programming Options
➣ Batch Program 1-16 MX-Sensors

Advanced Mode Service:

➣ Same TPMS Features as Quick Mode
➣ TPMS Status Screen – View System Faults
➣ Read & Clear TPMS DTCs
➣ On-Tool DTCs Description
➣ Program MX-Sensors by Copying ECU Sensor IDs
➣ On-Tool Relearn Procedure Guide
➣ Widest Vehicle Coverage For OBD Relearn

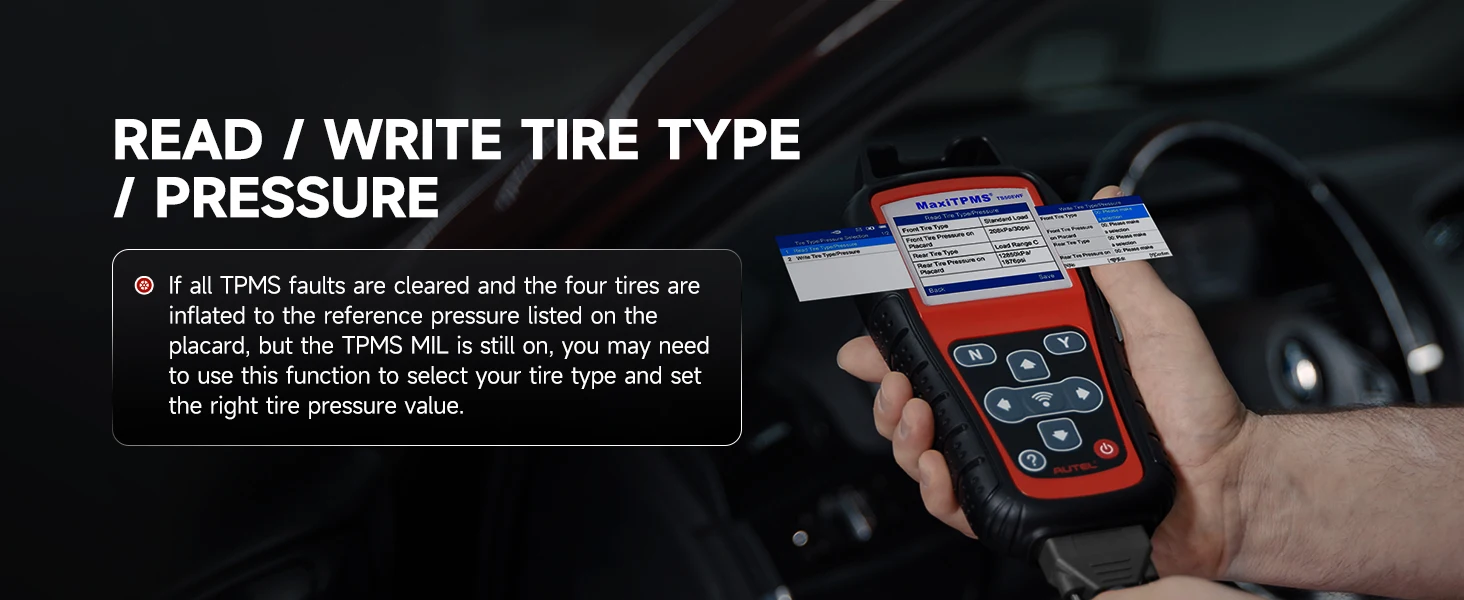

➣ Tire Pressure Placard Value Reset

MaxiTPMS TS508WF 4 Modes to Program Autel MX-Sensors:

Autel MaxiTPMS TS508WF Wifi TPMS Programming Tool can program all Autel MX-sensors, both 315MHz and 433MHz to replace the broken sensors. TS508WF comes with 4 modes to program Autel MX-sensors:

➣ Copy By Activation: Requires activate the original sensors first.
➣ Copy By Manual Input: You can manually input the original ID.
➣ Auto Create 1-16: The sensors makes it possible to program up to 16 sensors simultaneously.
➣ Copy By OBD: You should connect OBD cable to retrieve the sensor ID from the ECU.

Note: Autel TS508WF can program Autel MX-sensors only, does NOT program OEM sensors.

Activate/Reset All Known TPMS Sensors & Read/Clear TPMS DTCs:

➣ Activate/Reset All Known TPMS Sensors: Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.

➣ TPMS Status Screen is Also Excellent, main Feature also Reflects 4 points：Read ECU sensor ID; Check sensor ID and ECU ID matching condition; Read DTCs from ECU and erase DTCs; View DTCs detail description.

➣ Read/Clear TPMS DTCs: TS508WF can read or clear TPMS DTCs,on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.

TS508WF Support Relearn All Sensors:

Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle’s ECU. It can perform 3 ways of TPMS sensors relearning:

➣ Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.
➣ Automatic Relearn: For some vehicles, can be completed by driving.
➣ OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.

Turn OFF MIL:

Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.

TS508WF can read or clear TPMS DTCs,on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.

Print Data Function:

Autel TS508WF TPMS diagnose Tool has Print Data function allows printing of TPMS DTC recorded data.Connect the tool and the computer with the supplied USB cable.Saved and viewTPMS DTCs, tire type and pressure information and print it out via PC for further analysis. This function can help users analyze and save data more conveniently.

Key Fob Testing:

When your remote key starts to fail or stop working, you can directly use the TS508WF in the tool library to test the signal strength of the remote key through WIIF or USB link, which is simple to use but quickly obtains results. Save your time by not having to go to the auto repair shop.

Wi-Fi Update:

The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.

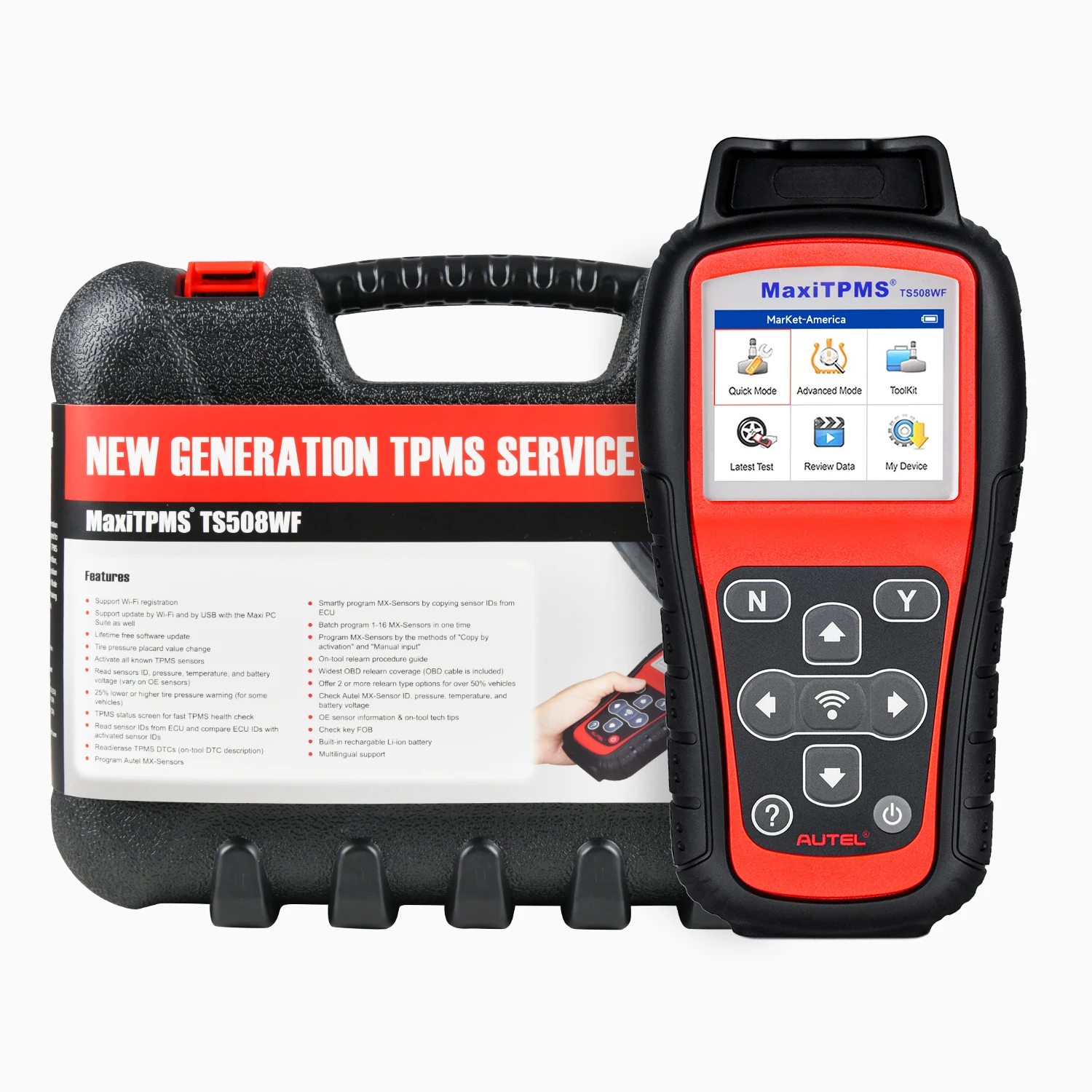

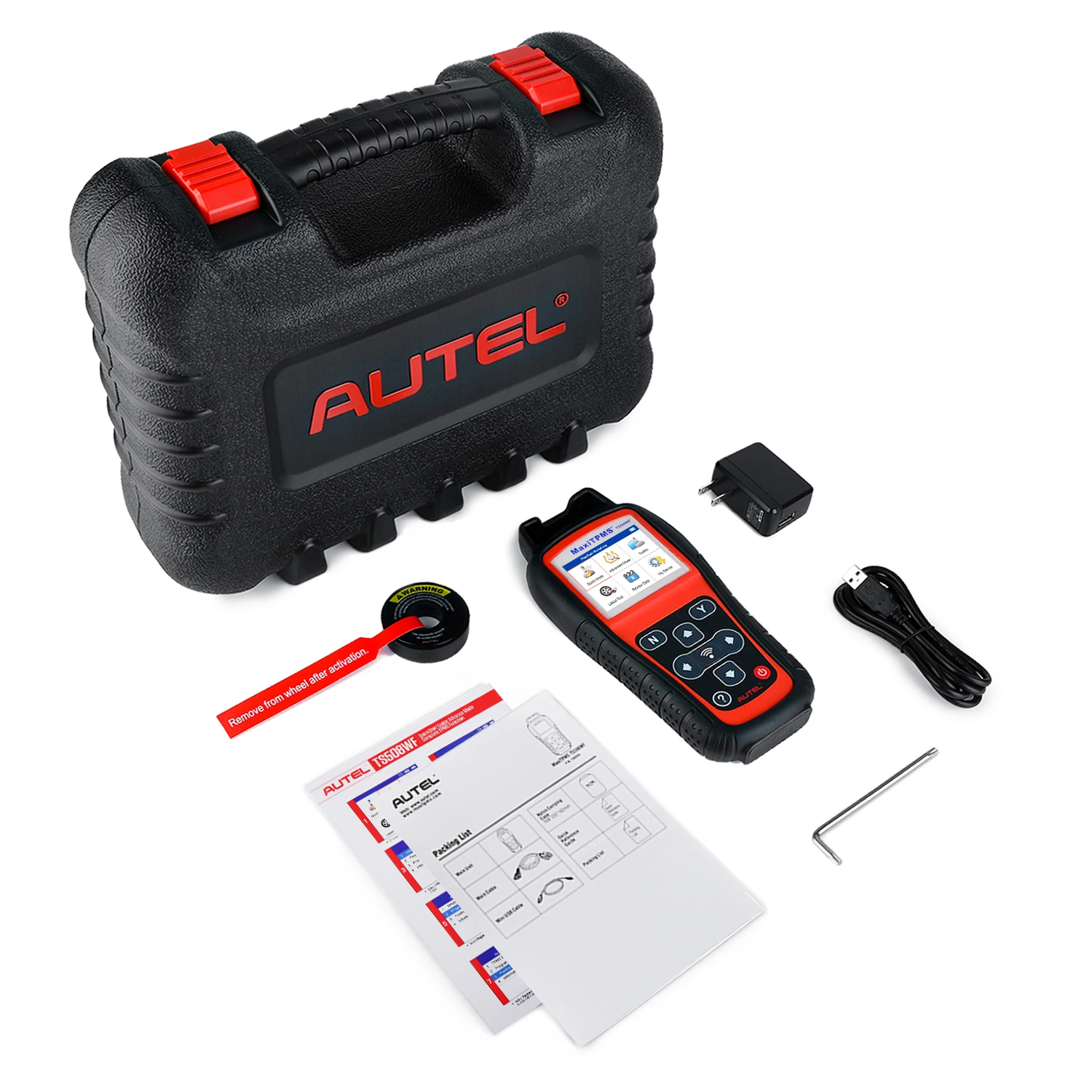

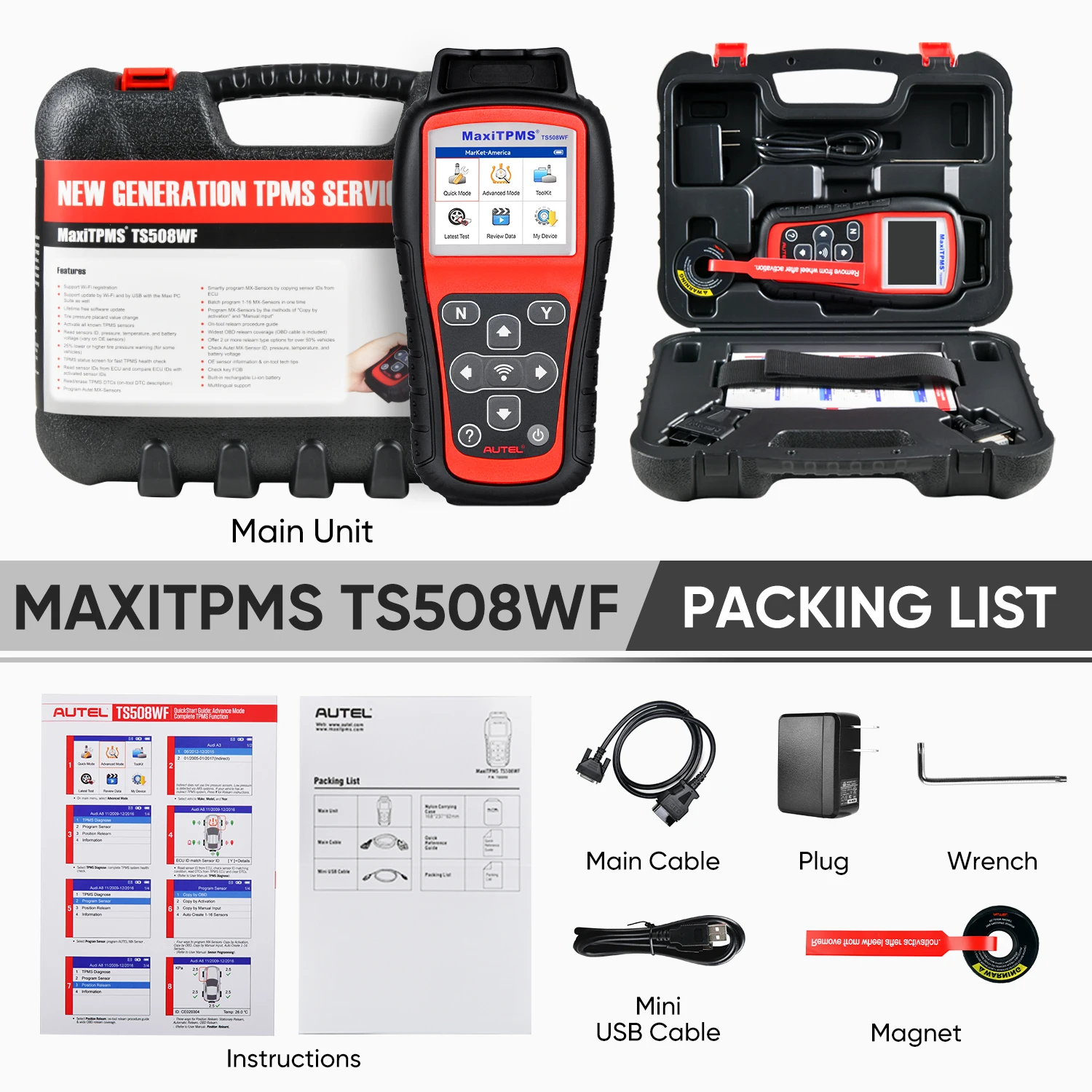

TS508WF Package List:

1pc x TS508WF
1pc x User manual
1pc x OBD II cable
1pc x USB cable
1pc x Carry case
1pc x AC Adapter
