Launch X431 Pad VII + Launch X431 HD / 2026

LAUNCH X431 PAD VII ELITE

Advantages of the ELITE version over the standard PAD VII

• EOBD/OBDII software updated to V23.03
• New feature: OBFCM data viewing (available as the last function in the menu)

High-End Professional Diagnostic Scanner

The LAUNCH X431 PAD VII ELITE is a premium diagnostic tool with a 13.3-inch large touchscreen, 32 service functions, and SmartLink remote diagnostics. Equipped with a 2.0 GHz octa-core optimized chipset, Android 9.0 operating system, 8GB RAM, and 256GB storage, the X-431 PAD VII ELITE performs intelligent diagnostics faster than ever.

Key Benefits

• Larger memory (8GB) for smoother operation
• Sunlight-readable display
• Supports 9 expansion modules, such as oscilloscope, sensor box, battery tester, TPMS, videoscope, and more
• Supports SmartLink remote diagnostics
• Supports D-PDU / J2534 / RP1210 diagnostic standards and CAN / CAN FD / DOIP protocols
• Supports access to FCA Group units protected by the Security Gateway Module (SGW)
• SGW access can be purchased directly within the software
• The HaynesPro database (repair information) is also available for purchase within the software

Supported Languages

English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian (partial), Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, and Czech.

Free updates: 2 years

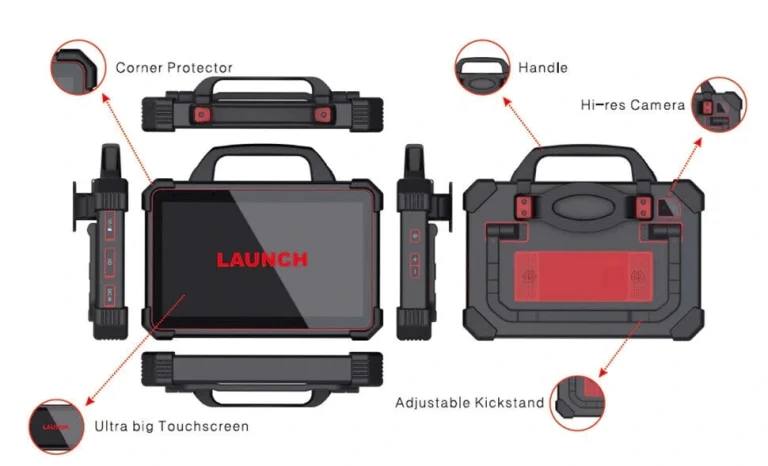

Meet the LAUNCH X431 PAD VII ELITE

An all-in-one diagnostic scanner and the latest upgraded model in the X431 series, improving on the ProS V, V+, and PAD III/V. It meets top-tier workshop standards with:

• ECU programming and coding
• 35+ reset services
• 60+ special functions
• Active tests
• Full-system diagnostics
• Topology mapping
• Troubleshooting guidance
• OBDII connector pin detection

It delivers OE-level performance and supports 110 vehicle brands worldwide, with compatibility for J2534 / RP1210 / D-PDU / CAN / DOIP / CAN FD.

J2534 ECU Programming

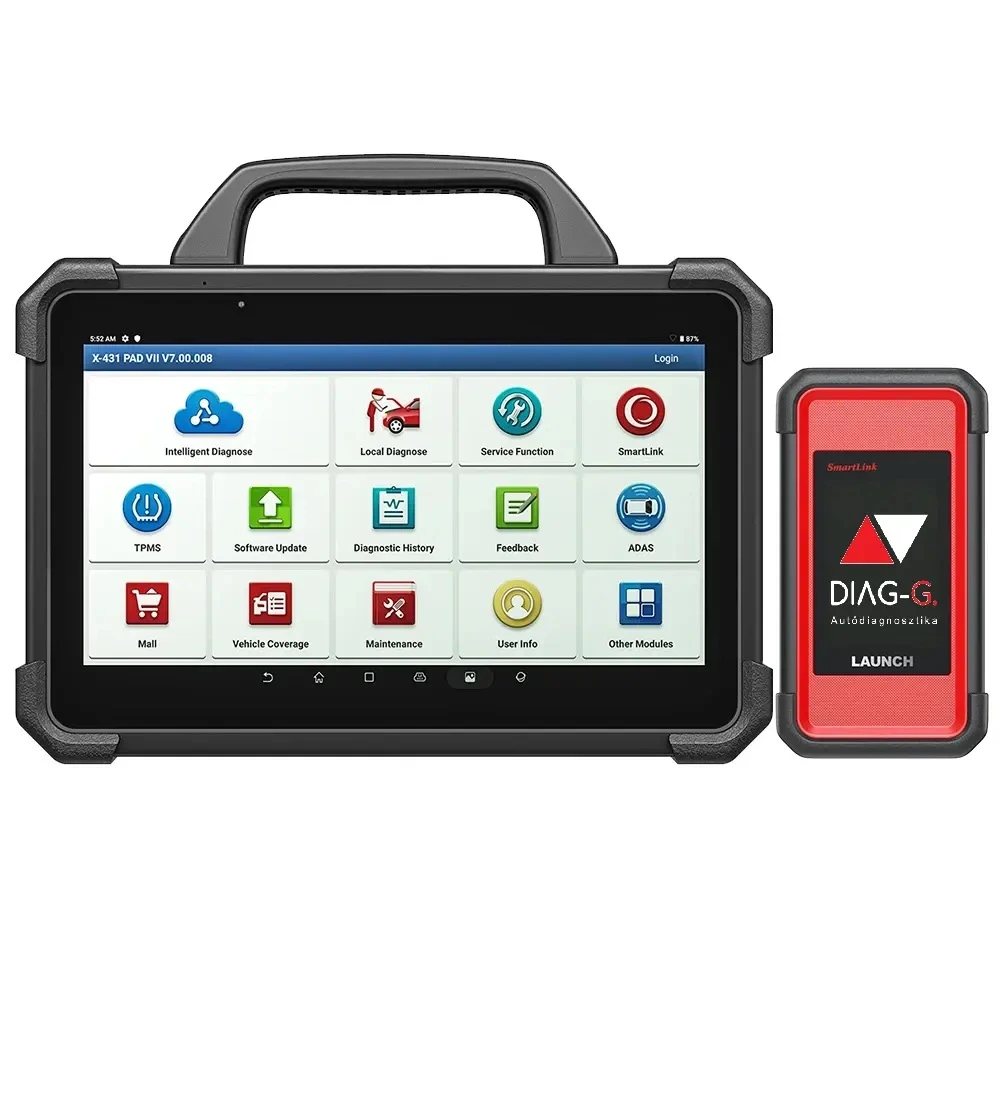

This diagnostic tool is equipped with the SmartLink C VCI interface, which acts as a bridge to OEM software for efficient J2534 ECU programming, replacing existing ECU software/firmware, programming new ECUs, and solving software-related drivability and emissions issues.

Available for:

• VAG Group vehicles
• Mercedes-Benz
• BMW
• Porsche

Support for the Latest Vehicle Protocols

To diagnose complex passenger car and truck faults, the SmartLink C VCI Box was designed as an intelligent solution supporting a wide range of protocols:

• J2534 / RP1210 / D-PDU for passenger and commercial vehicles
• CAN / DOIP / CAN FD for the latest vehicle platforms

It covers more than 110 brands across the American, Asian, and European markets and is continuously updated. Heavy-duty vehicle software can be purchased in the in-app MALL module.

OE-Level Diagnostic Capabilities

The PAD VII ELITE offers:

• 35+ reset and relearn functions for everyday workshop repairs and adjustments
• 60+ advanced special functions such as PMI, power balance, online calibration, online login services, and more

Full-System Diagnostics

Deep diagnostic access to all available control modules, including:

• ECM
• Transmission
• ABS
• Airbag
• EVAP
• TPMS
• BMS
• and more

Topology Mapping

Visually checks DTCs and communication status across all systems.

4-in-1 Live Data Graphing

Makes problem detection easier during road testing.

Automatic Protocol Detection

Automatically identifies the communication protocol and checks whether the OBDII connector pins are damaged.

Main Functions

• Full-system vehicle coverage across the U.S., Asian, and European markets for 110+ brands
• Expandable through the new MALL module with additional software and services
• Real-time voltage display to monitor vehicle voltage during diagnosis
• Visual topology mapping of DTCs and system communication
• Support for CAN / CANFD / DoIP protocols and J2534 / D-PDU / RP1210 standards
• Automatic vehicle communication protocol detection
• Intelligent diagnosis with automatic VIN recognition
• Guided functions for VW and Audi
• Optional ADAS calibration
• Advanced coding and programming functions
• Expanded TPMS service support
• Dual-band 2.4GHz / 5GHz communication for fast and stable connection
• Suitable for light, medium, and heavy-duty vehicle diagnostics with SmartLink C
• Core functions include reading and clearing DTCs, remote diagnostics, bi-directional control, live data graphing, wireless software updates, and more
• Built-in repair information and video modules to help identify and solve problems faster

60+ Advanced Maintenance Functions

Examples include:

• VAG guided functions for VW / Audi / Skoda / Seat pairing, calibration, and basic settings without manually entering security access codes or channel numbers
• Component matching after module replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru, etc.
• Power balance test for Chrysler / GM / Ford
• Programmable Module Installation (PMI) for Ford / Mazda
• Personalization for BMW / Porsche / Toyota / Subaru
• Online calibration
• Online account login service
• Online parameterization
• And more, with continuous expansion

35+ Reset and Relearn Services

Includes functions such as:

• Oil reset
• Injector coding
• Brake reset
• SAS reset
• BMS service
• ABS bleeding
• Throttle matching
• TPMS reset
• DPF regeneration
• Transmission learning
• AFS reset
• EGR adaptation
• Sunroof reset
• Suspension reset
• Window calibration
• Seat calibration
• Language change
• A/F reset
• Coolant bleeding
• AdBlue reset
• NOx sensor reset
• Start/Stop reset
• Headlamp installation
• Seat matching
• Door and window initialization
• Air suspension matching
• Multimedia video reset
• Cluster reset
• Immobilizer service
• Tire replacement
• and more

Function menus vary depending on vehicle make and model year.

8 Supported Expansion Modules

The LAUNCH X431 PAD VII ELITE supports 8 expansion modules, including:

• VSP-600 VideoScope – close-up visual inspections in tight spaces
• X-PROG & X-PROG3 Immobilizer – locksmith-level key programming and IMMO services
• S2-2 Sensorbox – quickly diagnoses and simulates vehicle sensor faults
• O2-1 ScopeBox Oscilloscope – captures and displays circuit waveforms for observation and analysis
• Wi-Fi printer – prints diagnostic data and reports
• X431 TSGUN – activates, relearns, and programs LAUNCH sensors
• BTS360 Bluetooth battery tester – thoroughly tests vehicle batteries

ECU Coding

Component Matching

The scanner allows you to relearn control modules, clear original ECU memory, and write adaptive data to specified components, helping establish stable communication between ECU modules after repair or replacement.

Function Activation / Deactivation

You can also change the original behavior of the vehicle, including enabling hidden premium functions or disabling unwanted ones, such as:

• Disabling Start/Stop
• Lock/unlock confirmation sounds
• Automatic door locking at a set speed
• Seat belt warning tones
• Auto-folding mirrors
• Window closing with key lock
• Emergency braking light flashing
• Daytime running light on/off
• DRL brightness adjustment
• Headlight flashing on lock/unlock
• GPS-based real speed display
• Fuel consumption display at set speed
• Instrument cluster brightness adjustment
• Shift point display in eco or sport mode
• Head-up display / dashboard display selection
• Incoming call display
• And much more

Not universally compatible. Functions vary by make, model, and year.

Accurate ADAS Calibration Support

ADAS (Advanced Driver Assistance System) includes safety systems such as:

• Automatic Emergency Braking (AEB)
• Lane Departure Warning (LDW)
• Lane Keeping Assist
• Blind Spot Detection
• Night Vision Camera
• Adaptive Lighting

The scanner can read ADAS fault codes. To perform ADAS calibration, a separate ADAS rack is required.

99.99% Vehicle Coverage

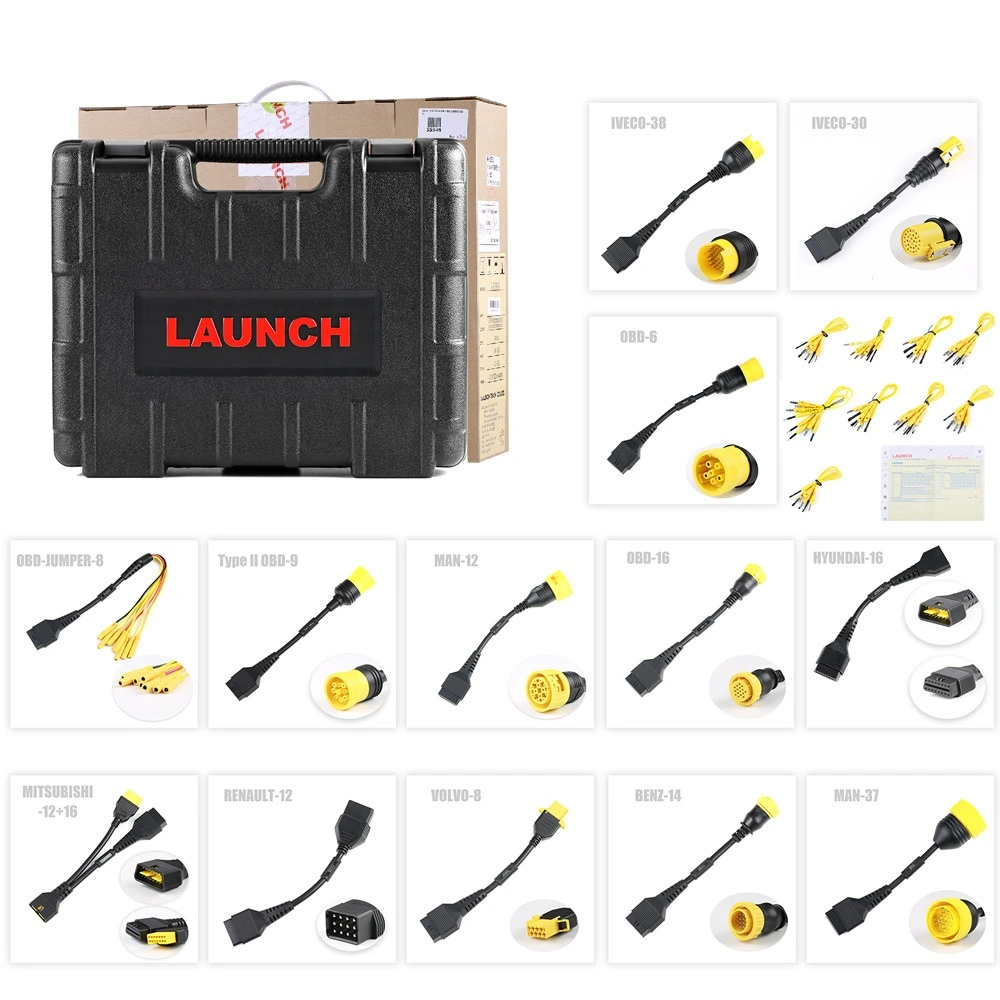

This automotive scanner comes with a variety of adapters and supports modern protocols and standards such as CAN / CANFD / DoIP / J2534 / D-PDU / RP1210, offering coverage for 99.99% of vehicles on the market, including heavy-duty brands.

Passenger Vehicles

USA:
Ford / Lincoln, GM / Buick / Cadillac / Chevrolet, Chrysler / Dodge / Jeep

Asia:
Toyota / Lexus, Honda / Acura, Mazda, Subaru, Nissan / Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, Kia, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

Europe:
Audi, Mercedes / Maybach, BMW / MINI / Rolls-Royce, VW / Bentley / Bugatti, Opel / Vauxhall, Peugeot, Citroën, Volvo, Sprinter, Renault / Dacia, Fiat / Romeo / Abarth / Lancia, Rover, Land Rover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Aston Martin, Porsche, Jaguar

Australia:
AUST Holden, AUST Ford

Heavy-Duty Vehicles (Optional)

Heavy-duty software kit available separately.

Supported examples include:

• Nissan Diesel
• Mitsubishi Diesel
• USA Ford Diesel
• Kenworth
• Astra
• Mercedes-Benz Heavy Duty
• Bosch Diesel
• China Heavy Duty
• Cummins Heavy Duty
• DAF
• Delphi Diesel
• Denso Diesel
• FAW Liberation
• Foton Auman
• FUSO
• Hino
• Hyundai Heavy Duty
• Isuzu Heavy Duty
• Iveco Heavy Duty
• JAC Heavy Duty
• Mack
• MAN
